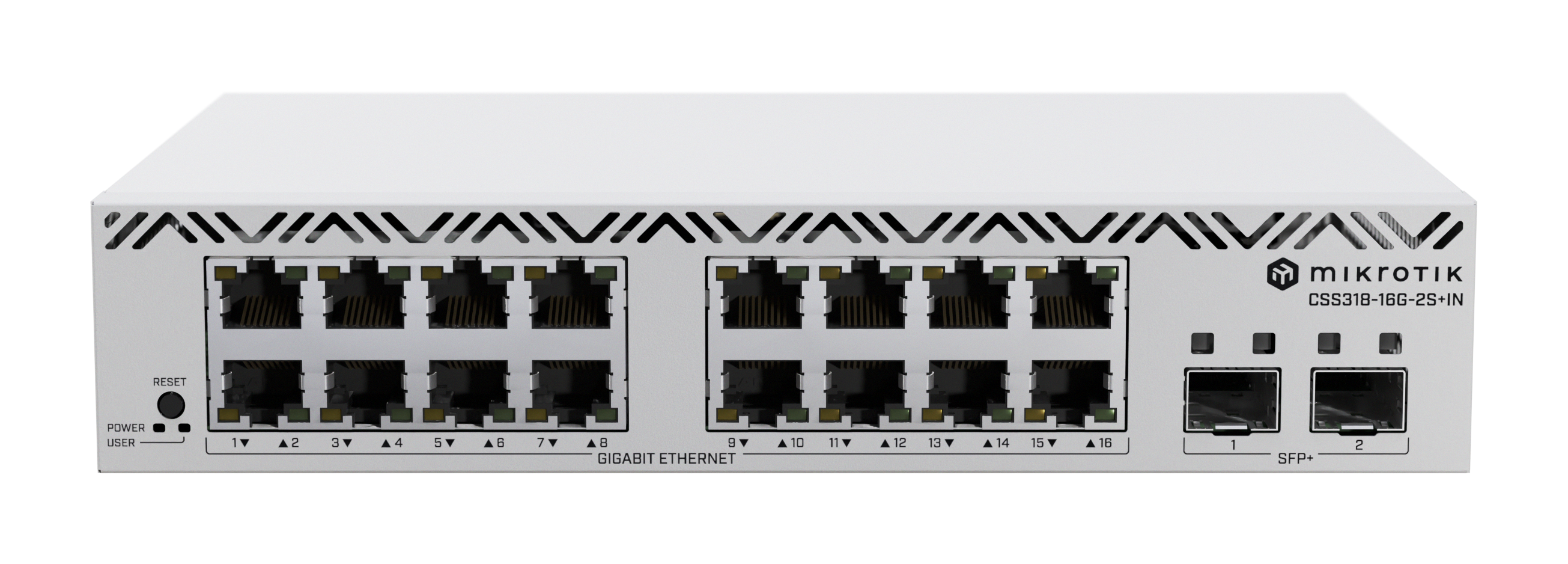

The MikroTik CSS318-16G-S+IN is a straightforward and cost-effective 16-port 1GbE switch with two SFP+ 10G ports, designed to fit in 10-inch racks. According to ServeTheHome, this switch is ideal for those seeking affordable 1GbE connectivity in a compact, half-rack form factor, suitable for devices like the Raspberry Pi or NVIDIA Jetson Orin kits.
The switch features a desktop design with rubber feet and can also be mounted in a 1U rack height, fitting side-by-side in a 19-inch rack or alone in a 10-inch rack. It includes sixteen 1GbE ports and two SFP+ ports for 10G connectivity but lacks a lower-speed management port or PoE-in port to optimize costs. The switch is passively cooled with vents on the sides and rear, and it has an internal AC-DC power converter.
Internally, the MikroTik CSS318-16G-S+IN uses a Marvell Prestera 98DX2518 switch chip and a Pairui AC-DC converter, integrated into the main PCB. The switch runs on MikroTik’s SwOS, offering features like SFP information, port isolation, link aggregation, forwarding, RSTP, VLAN setup, and ACL. It also supports easy firmware updates via a file repository.
Performance-wise, the switch delivers as expected for mature 1GbE and 10GbE switch silicon. Power consumption is low, with 3.3W at idle and up to 5W with a SFP+ to 10Gbase-T adapter. The switch is fanless, ensuring quiet operation.
Installation in 10-inch racks can be challenging due to variations in rack widths, but the switch fits well in 19-inch racks. MikroTik provides both full-width and half-width rack ears for installation.
Priced at around $107-$115, the MikroTik CSS318-16G-S+IN is a good option for those needing a specific port configuration in a compact form factor. However, some users may prefer additional features like 2.5GbE ports or PoE+ capabilities, which are not included in this model. Overall, it is a reliable and cost-effective switch for those with specific needs, as highlighted by ServeTheHome.
